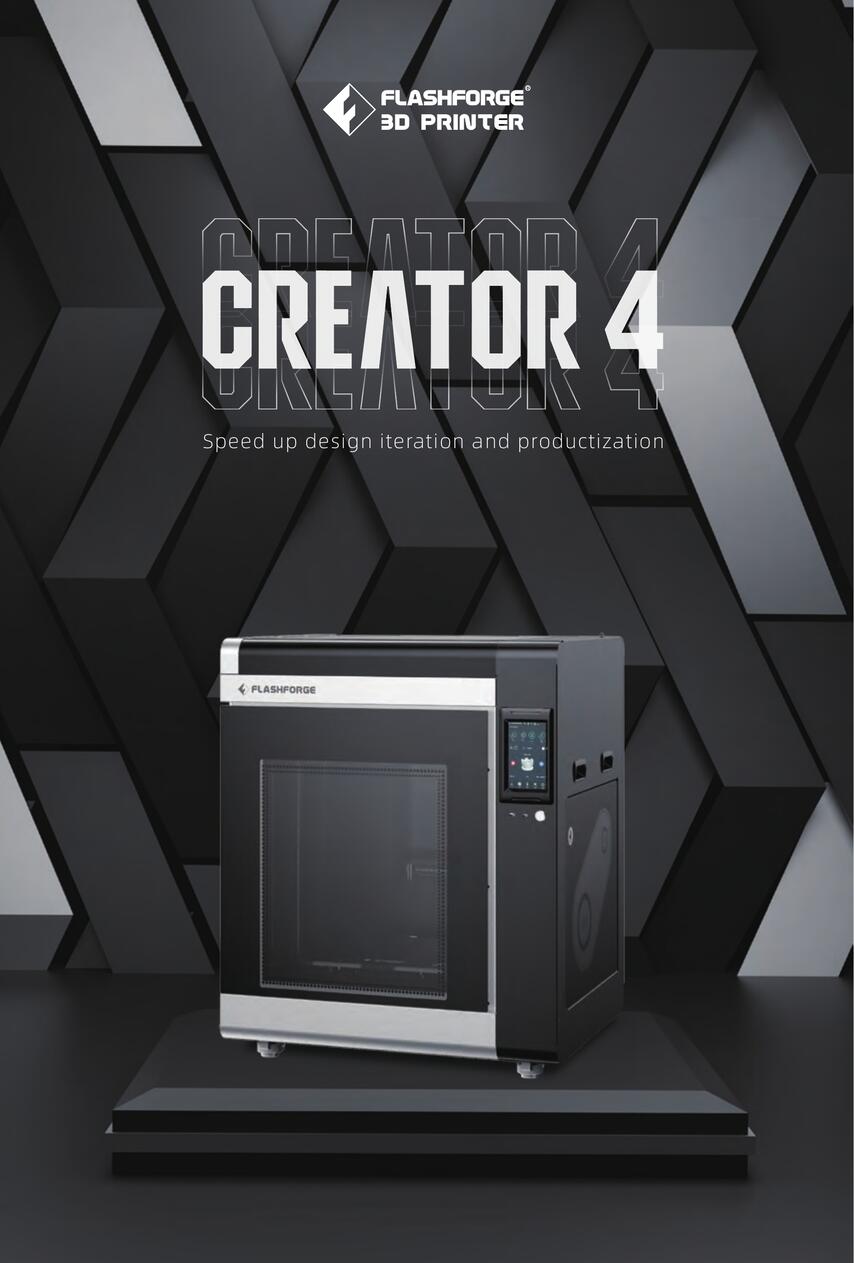

Flashforge creator 4
Flashforge creator 4
creator 4 tæt billede
creator 4 indvendigt
creator 4 byggekammer
creator 4 med tørrekasse
creator 4 laver 3d print
creator 4 filament låge
creator 4 toplåge

Flashforge Creator 4

74.999,00 kr.
64.999,00 kr.

Kontakt os på mail for et skræddersyet tilbud: info@flashforge.dk

  • 3 Udskiftelige ekstrudere til at printe forskellige filamenter
  • Uafhængig dobbelt ekstruder
  • Stor byggeområde på 400mm x 350mm x 500mm
  • Temperatur kontrolleret printkammer mindsker sammentrækningen af materialer
  • Brugervenlig og intelligent filament styringssystem


Creator 4 er en højtydende, fleksibel og intelligent 3D-printer, perfekt til jeres kommercielle print.

Creator 4 har et termisk kontrol system, der kan holde en konstant temperatur i printkammeret op til 65°C, hviket mindsker sammentrækning og revner på jeres printede modeller.
Den har et stort byggeområde, som sammen med dens uafhængige ekstrudere enten kan bruges til at printe store emner eller printe 2 ens emner på samme tid, hvilket gør den god til masse produktion.


Service
Tilbehør
1
+
Tilføj til kurv
Priser er inkl. moms
Video
Creator 4

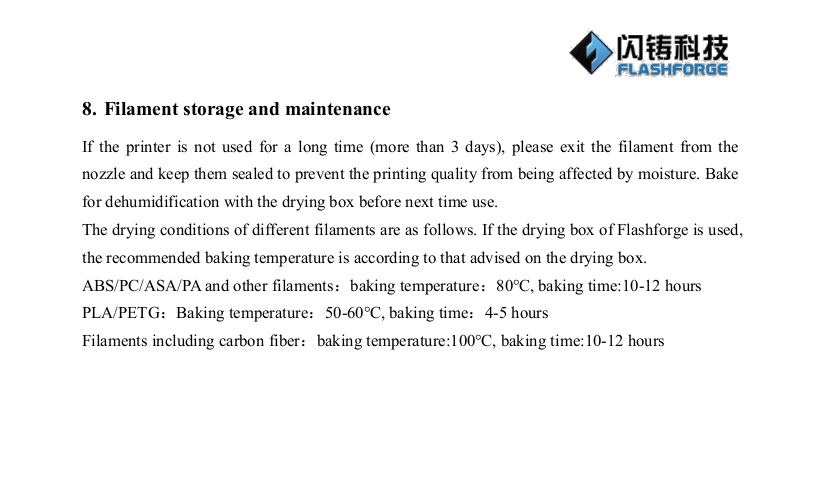

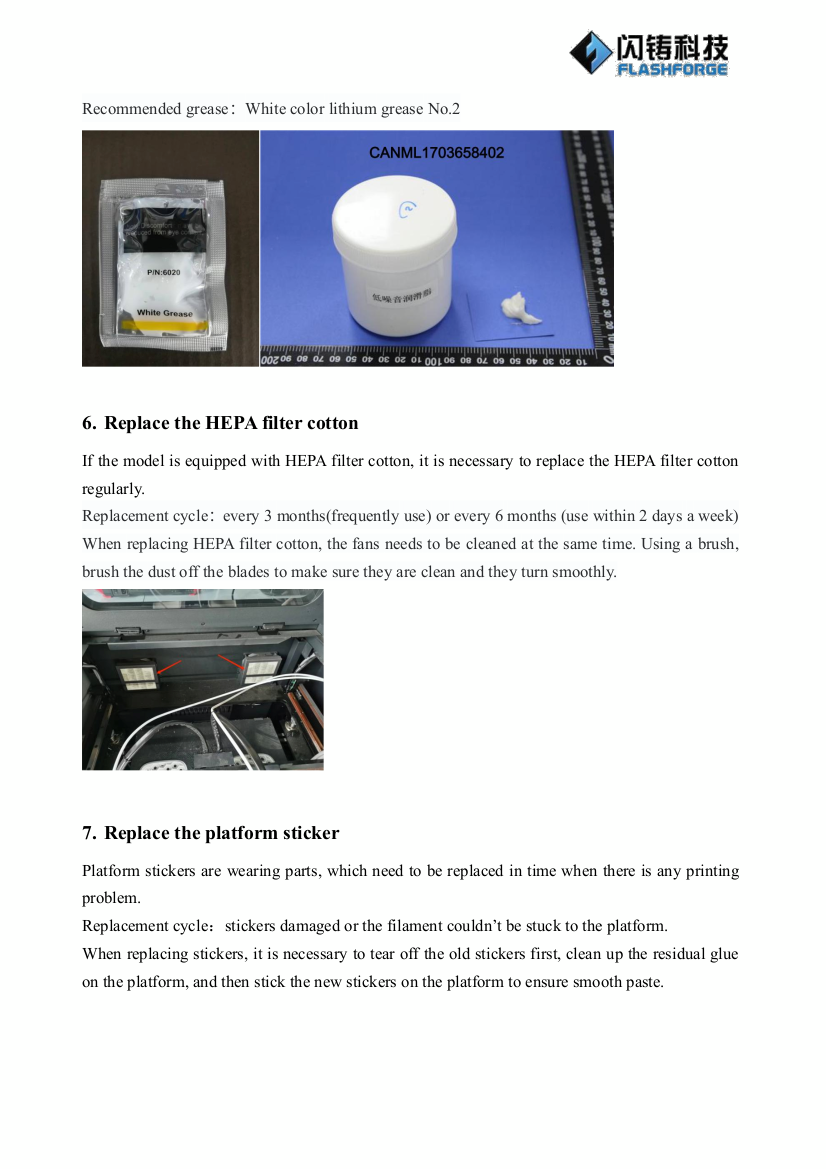

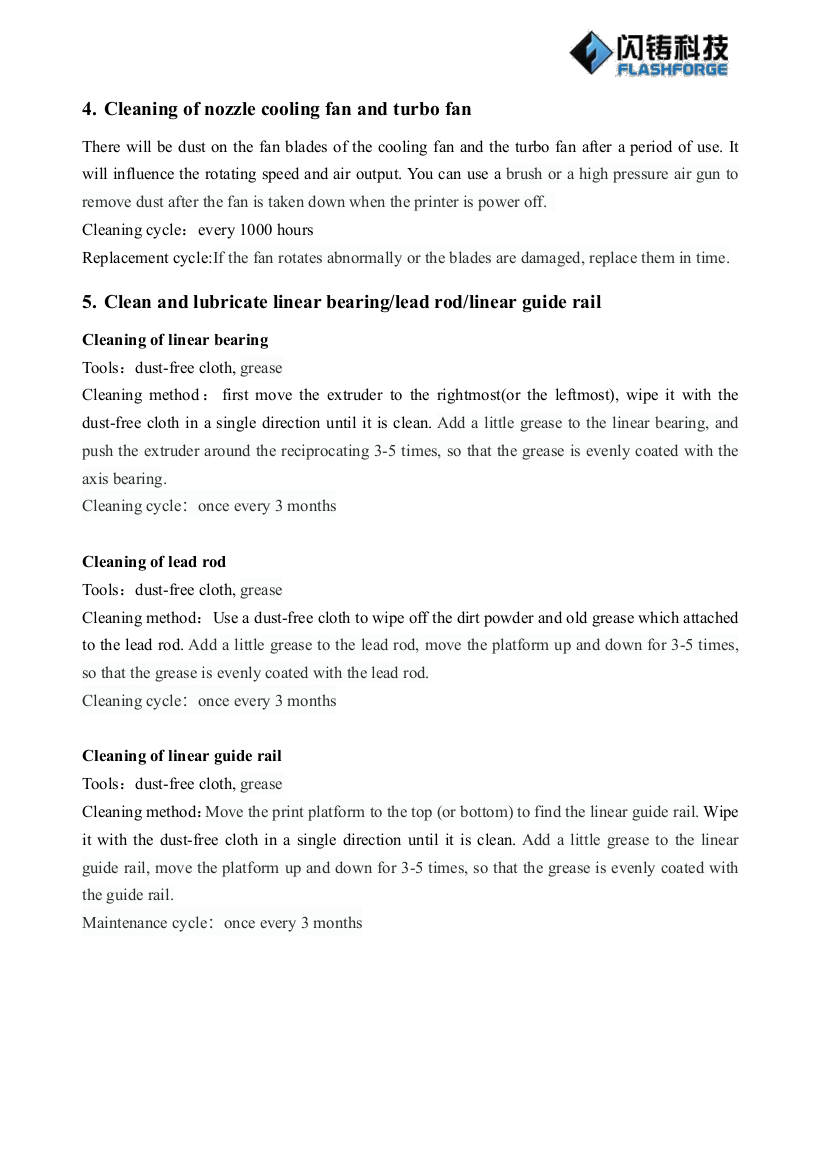

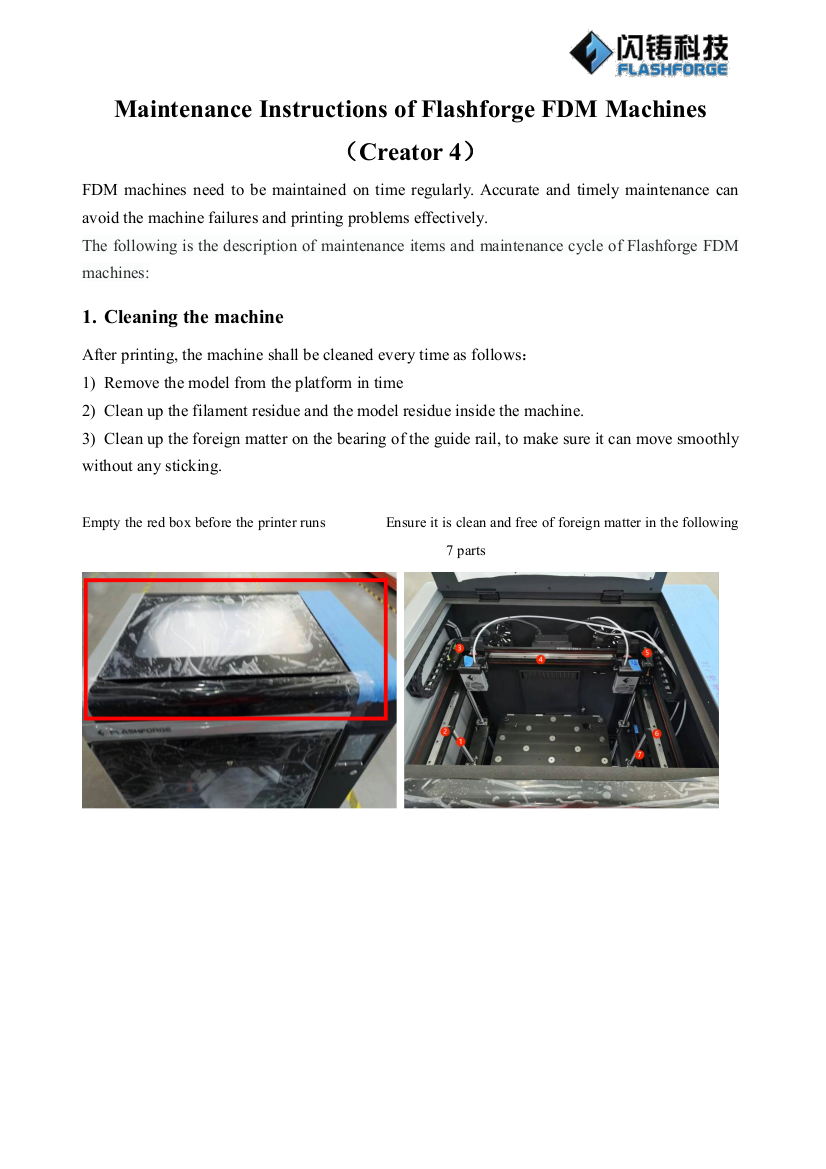

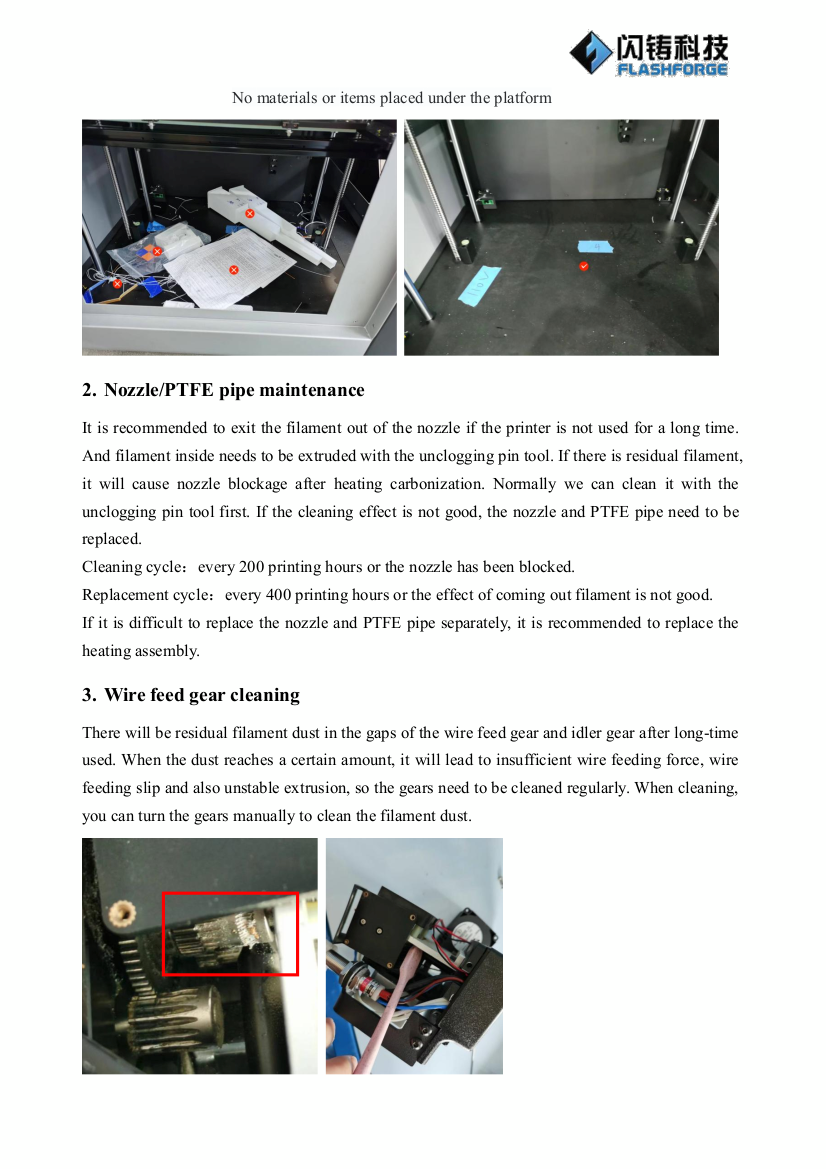

Vedligeholdelse
PDF
Specs
Beskrivelse



Dobbelt ekstrudere, der arbejder selvstændigt

De to ekstrudere i Creator 4 arbejder uafhængigt af hinanden, ikke bundtet sammen, så når du vælger en ekstruder, der arbejder, forsvinder den anden ekstruder væk fra udskrivningsområdet og dermed ikke ekstra overfyldte filamenter på det trykte objekt. De to ekstrudere kunne også arbejde samtidigt og uafhængigt for at fordoble dine output! Creator 4 er et godt valg til masseproduktion!

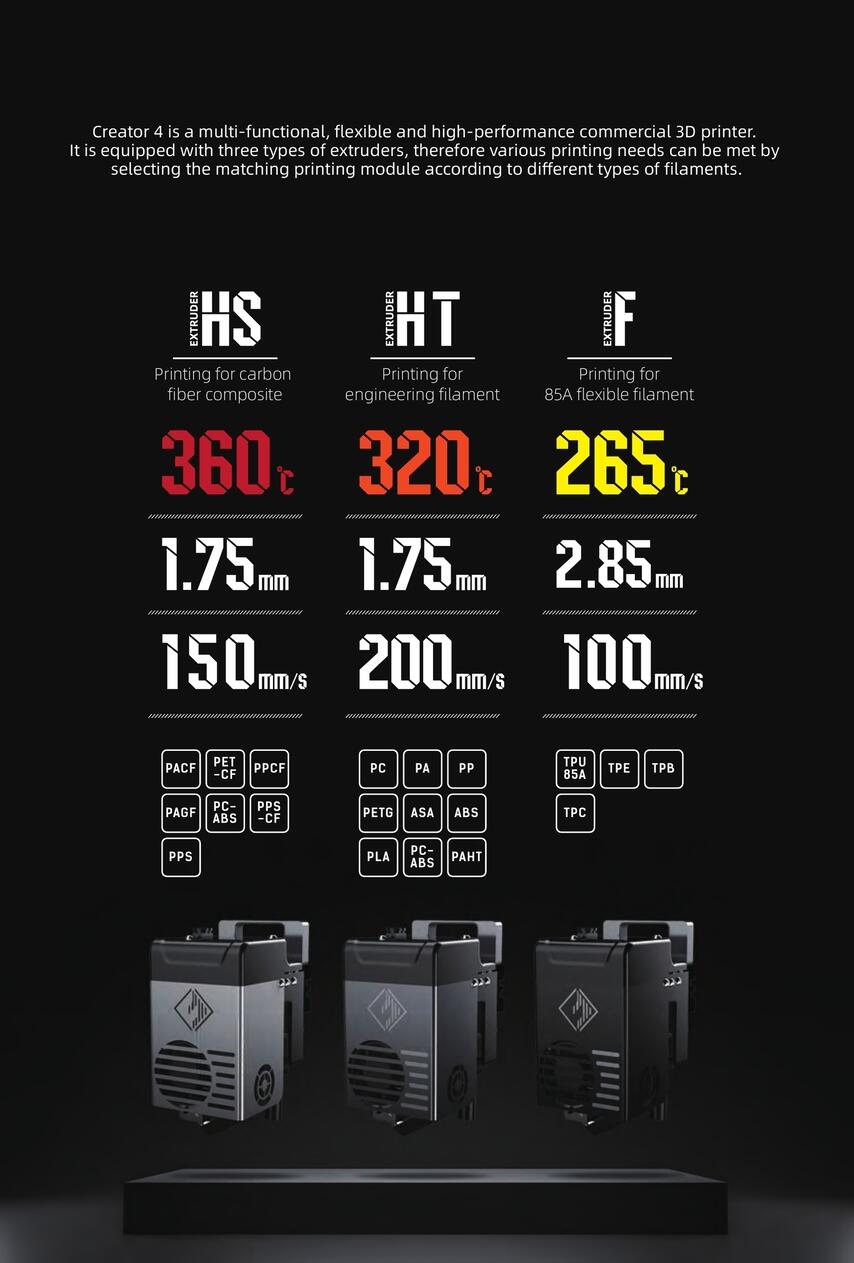

3 Ekstruderindstillinger der understøtter flere filamenter

Ekstruder-F til fleksibel filament.
Ekstruder-HTtil ingeniørfilament.
Ekstruder-HS til kulfiberkomposit.

Extruder-F

Printing for 85A Flexible Filament

Printing Speed
100mm/s
Filament Diameter
2.85mm
Printing Temperature
265℃

Supported Filament
TPU85A / TPE / TPB / TPC

Extruder-HT

Printing for Engineering Filament

Printing Speed
200mm/s
Filament Diameter
1.75mm
Printing Temperature
320℃

Supported Filament
PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT

Extruder-HS

Printing for Carbon Fiber Composite

Printing Speed
150mm/s
Filament Diameter
1.75mm
Printing Temperature
360℃

Supported Filament
PACF / PET-CF / PP-CF / PA-GF / PC-ABS / PP-GF / PPS-CF / PPS

Temperature in the chamber ensures good printout quality


The advanced thermal-control system of Creator 4 keeps the print chamber at 65℃, which effectively reduces model shrinkage, warping at corners, and furnish breakage. Creator 4 ensures good printout quality, good printing precision and improves print success rate a lot.

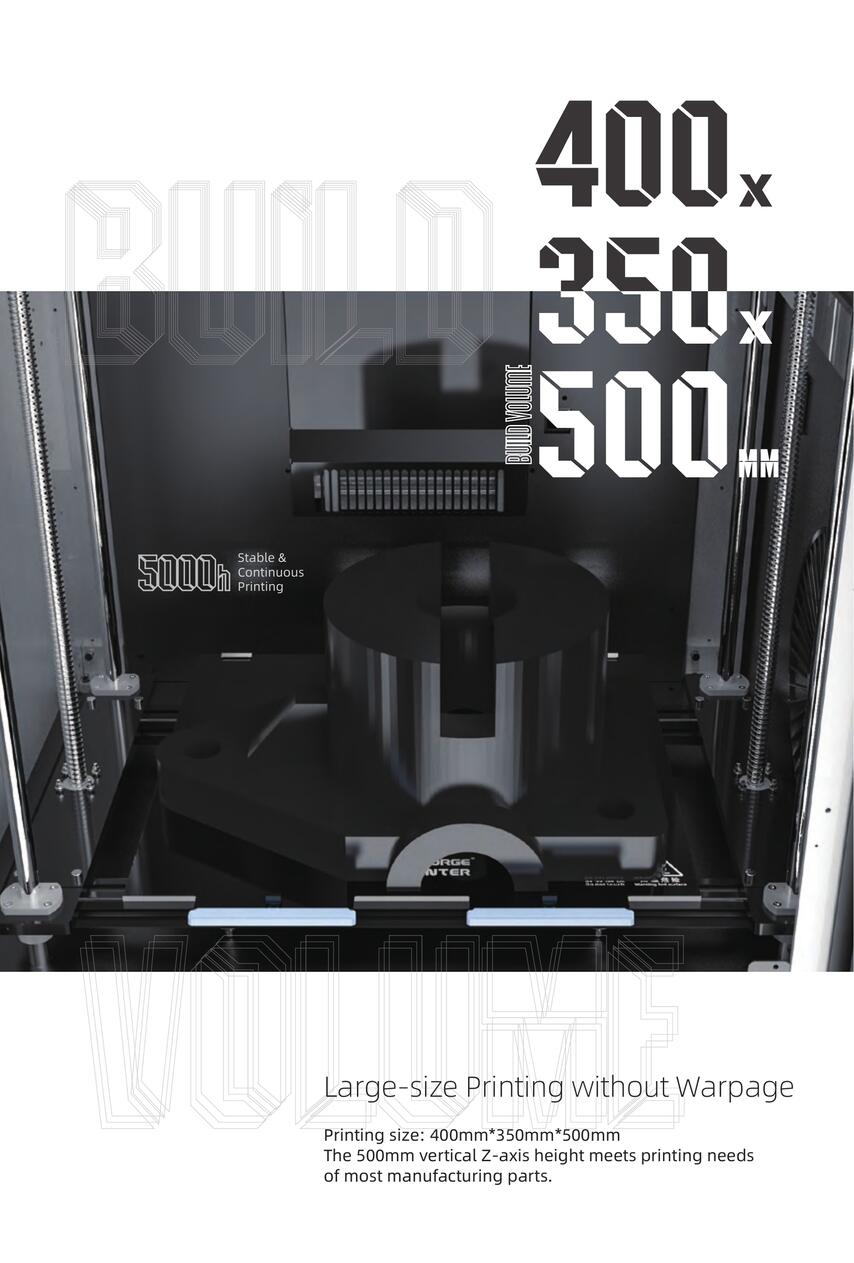

Large build volume

  • Printing size: 400mm*350mm*500mm

  • 500mm in vertical height meets most manufacturer's printing needs.
  • High-precision printing

  • Linear-rail leadscrew stepping along X and Y axes greatly improves motion stability, hence better printing precision.

  • Brand new S-type motion control system achieves smoother start and stop, precise positioning of the nozzle, and wonderful printing details.

  • CNC structure keeps machine stable and less shake when it's working.

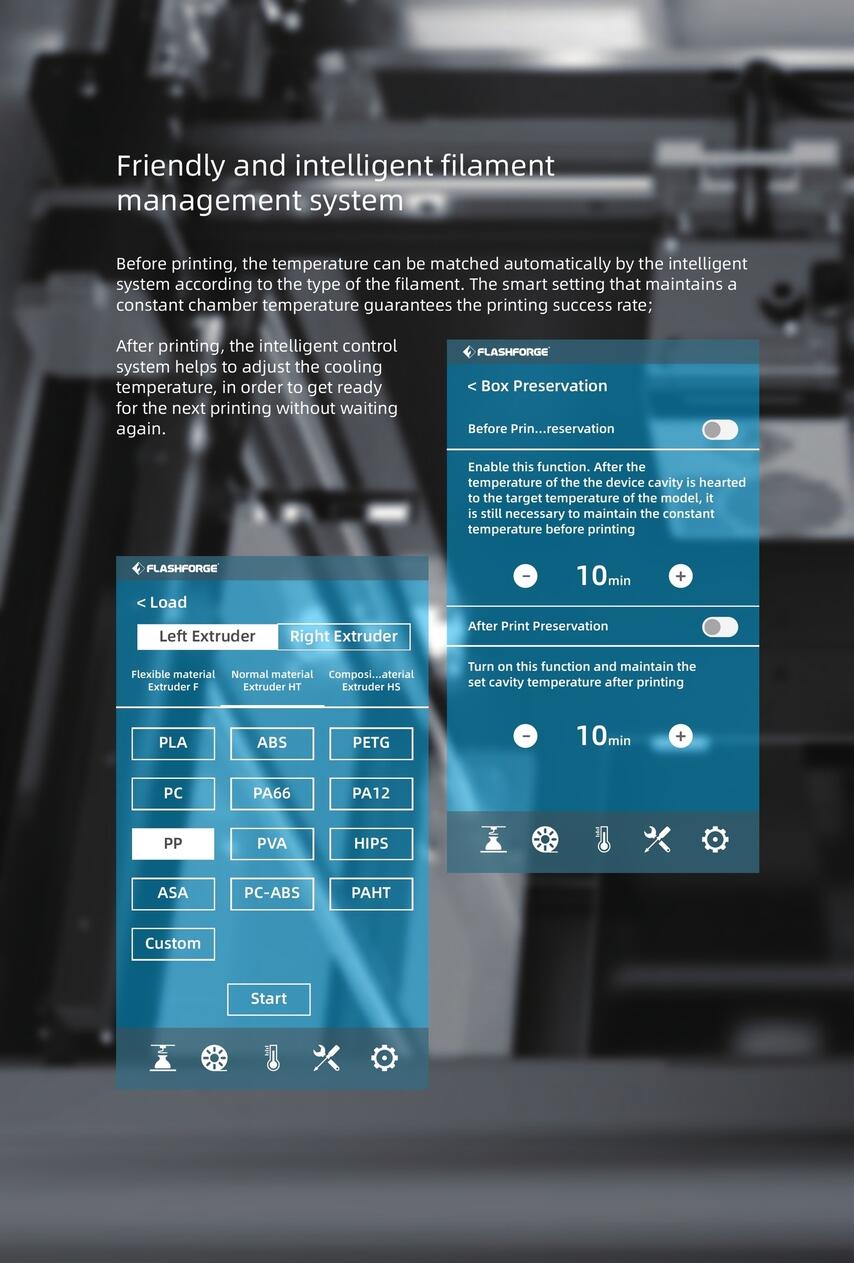

  • Friendly and intelligent filament management system

    Different filaments can be automatically adjusted to different preheating temperatures in the chamber, achieving higher success rate of printing. When finishing printing, the chamber temperature can be adjusted automatically for model cooling down. Quite friendly system design for next print!

    HEPA 13 Air Filter

    7-Inch smart touch screen

    Camera with remote control

    Printing resuming after recovering from power failure

    Built-in-filament 2kg + 1kg

    Auto power-off

    Filament Drying Station

    The Filament Drying Station is a multifunctional product that integrates 3D printing equipment placement, storage and drying of 3D printing filaments, and the movable shelf function. As a matching product of Creator 4, it aims to restore the properties of the wet filaments and solve the problem of the drying and storage of filaments;
    As its size matches the size of Creator 4, it can be used as an elevated shelf; With casters equipped, it is convenient for movement and switching the working area at will.

    Improve the whole process of 3D printing and control the printing quality

    The Filament Drying Station improves the whole process of 3D printing, ensures the stable use of filaments throughout the whole workflow, prolongs the normal running time of your printer to the maximum extent, and guarantees the printing quality.


    Type / Creator 4-A Creator 4-S
    Ekstruder Ekstruder-F (optional) Ekstruder-HT Ekstruder-HS
    Filament TPU85A / TPE / TPB / TPC PLA / PETG / PC-ABS / PAHT / ABS /ASA / PP / PA / PC PACF / PET-CF / PP-CF / PA-GF / PC-ABS / PP-GF / PPS-CF / PPS
    Ekstruder type IDEX IDEX IDEX
    Dyse diameter 0.4mm 0.4(0.6/0.8)mm 0.4(0.6/0.8)mm
    Ekstruder temperature 265℃ 320℃ 360℃
    Maximum chamber heating temperature 65℃ 65℃ 65℃
    Printing volume 400*350*500mm 400*350*500mm 400*350*500mm
    Printe-hastighed 100mm/s 200mm/s 150mm/s
    Maximum platform heating temperature 130℃ 130℃ 130℃
    Touch screen size 7-inch 7-inch 7-inch

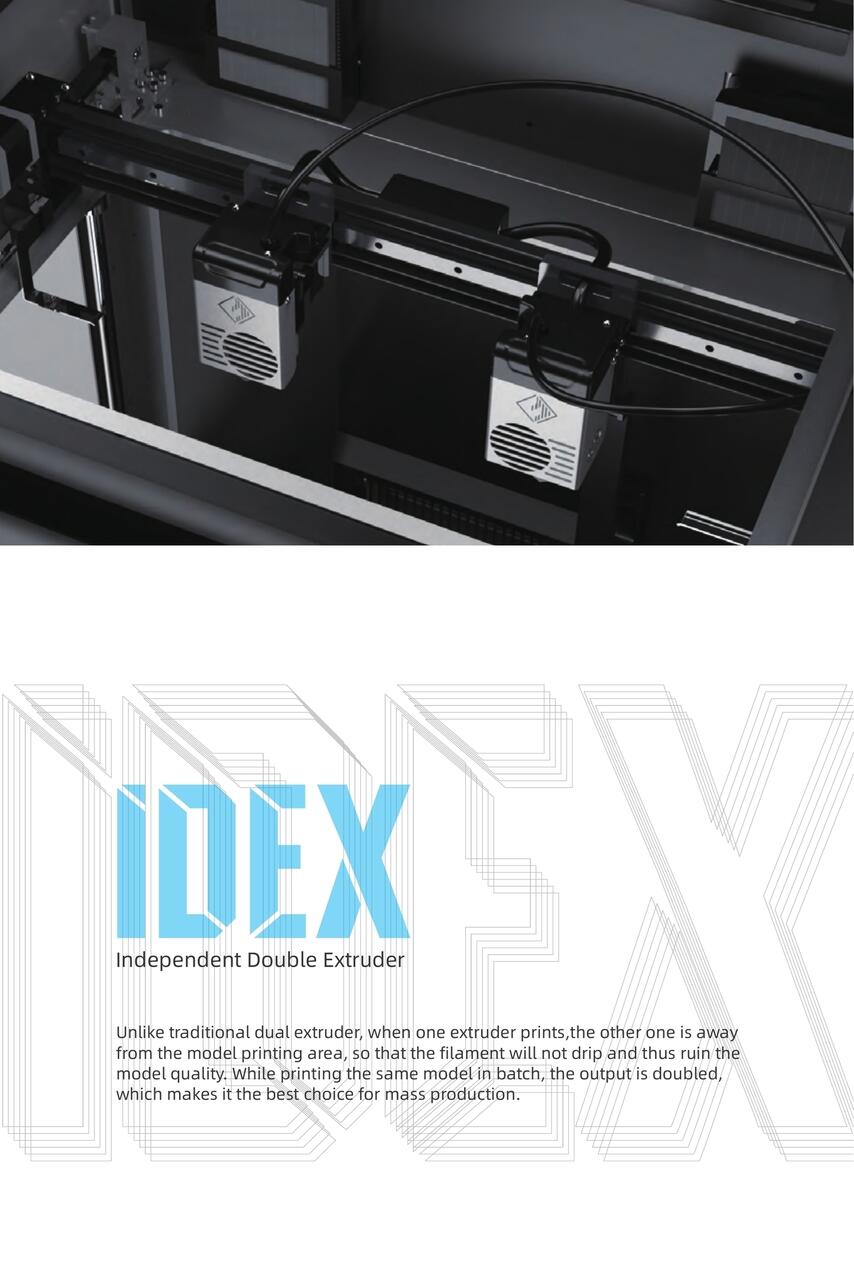

    Dual extruders working independently

    The two extruders of Creator 4 work independently, not bundled together so that when you select one extruder working the other extruder goes away from the printing area hence not extra overflowing any filaments on the printed object. Also, the two extruders could work simultaneously and independently to double your outputs! Creator 4 is a good choice for mass production!

    3 Extruder options support multiple filaments

    Extruder-F for flexible filament.
    Extruder-HT for engineering filament.
    Extruder-HS for carbon fiber composite.

    Extruder-F

    Printing for 85A Flexible Filament

    Printing Speed
    100mm/s
    Filament Diameter
    2.85mm
    Printing Temperature
    265℃

    Supported Filament
    TPU85A / TPE / TPB / TPC

    Extruder-HT

    Printing for Engineering Filament

    Printing Speed
    200mm/s
    Filament Diameter
    1.75mm
    Printing Temperature
    320℃

    Supported Filament
    PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT

    Extruder-HS

    Printing for Carbon Fiber Composite

    Printing Speed
    150mm/s
    Filament Diameter
    1.75mm
    Printing Temperature
    360℃

    Supported Filament
    PACF / PET-CF / PP-CF / PA-GF / PC-ABS / PP-GF / PPS-CF / PPS

    Temperature in the chamber ensures good printout quality


    The advanced thermal-control system of Creator 4 keeps the print chamber at 65℃, which effectively reduces model shrinkage, warping at corners, and furnish breakage. Creator 4 ensures good printout quality, good printing precision and improves print success rate a lot.

    Large build volume

  • Printing size: 400mm*350mm*500mm

  • 500mm in vertical height meets most manufacturer's printing needs.
  • High-precision printing

  • Linear-rail leadscrew stepping along X and Y axes greatly improves motion stability, hence better printing precision.

  • Brand new S-type motion control system achieves smoother start and stop, precise positioning of the nozzle, and wonderful printing details.

  • CNC structure keeps machine stable and less shake when it's working.
  • Friendly and intelligent filament management system

    Different filaments can be automatically adjusted to different preheating temperatures in the chamber, achieving higher success rate of printing. When finishing printing, the chamber temperature can be adjusted automatically for model cooling down. Quite friendly system design for next print!

    HEPA 13 Air Filter

    7-Inch smart touch screen

    Camera with remote control

    Printing resuming after recovering from power failure

    Built-in-filament 2kg + 1kg

    Auto power-off

    Filament Drying Station

    The Filament Drying Station is a multifunctional product that integrates 3D printing equipment placement, storage and drying of 3D printing filaments, and the movable shelf function. As a matching product of Creator 4, it aims to restore the properties of the wet filaments and solve the problem of the drying and storage of filaments;
    As its size matches the size of Creator 4, it can be used as an elevated shelf; With casters equipped, it is convenient for movement and switching the working area at will.

    Improve the whole process of 3D printing and control the printing quality

    The Filament Drying Station improves the whole process of 3D printing, ensures the stable use of filaments throughout the whole workflow, prolongs the normal running time of your printer to the maximum extent, and guarantees the printing quality.
